Risen Energy is a global Tier-1 PV manufacturer with 95.6GW+ cumulative shipments and 48GW+ annual capacity. Their 2024 product range covers three technology platforms — Hyper-ion HJT, TOPCon N-type, and Titan PERC — for residential, commercial, and utility-scale applications.

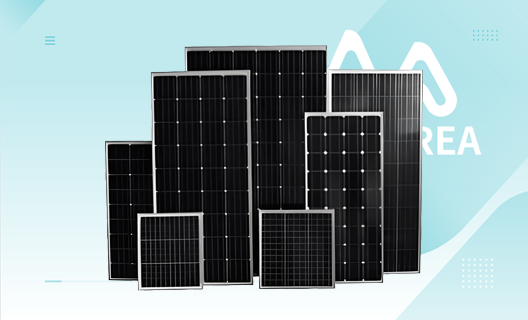

Hyper-ion HJT
The Hyper-ion series uses n-type HJT (Heterojunction) cells with Risen's proprietary 0BB (zero busbar) and ultra-thin cell technology — the first manufacturer to mass-produce both. HJT cells combine amorphous silicon passivation layers with crystalline silicon, achieving 23.8% module efficiency and an outstanding temperature coefficient of −0.24%/°C. The bifacial factor of 85%±10% and up to 30% rear-side gain significantly reduce LCOE. First-year degradation ≤ 1%, with ≥ 90% power retention over 30 years and an industry-leading carbon footprint below 376.5 kg CO₂eq/kWc.

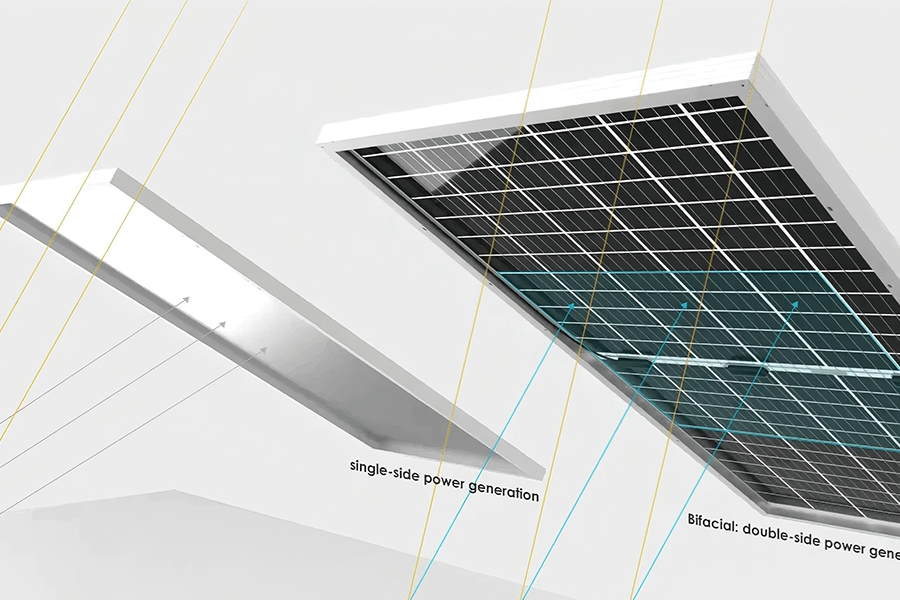

TOPCon 630Wp+
The large-format TOPCon series uses n-type TOPCon cells with SMBB technology, high-density encapsulation, and non-destructive cutting — delivering 23.3% module efficiency at 630W in a 2382×1134×30mm format. N-type cells eliminate boron-oxygen LID, ensuring first-year degradation ≤ 1% and annual degradation ≤ 0.3% (TOPCon series). The module is optimised for tracker systems with increased packing density, lower logistics costs, and excellent weak-light and PID resistance performance. Bifacial design adds up to 30% rear-side power gain.

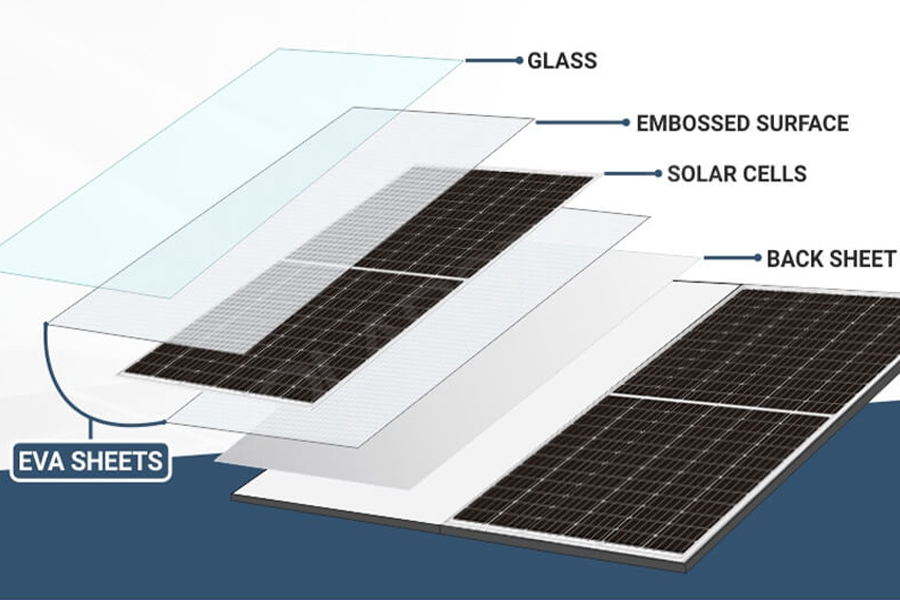

TOPCon 515Wp+
The residential TOPCon series delivers 23.2% module efficiency in a compact 1961×1134×30mm format (27.0kg), making it ideal for rooftop installations. Available in all-black and black frame options for aesthetic integration into residential buildings. N-type TOPCon technology provides better temperature coefficient (−0.29%/°C), higher bifaciality, and lower LID/LeTID compared to P-type PERC — generating more energy over the 30-year project lifetime. The 108-cell (6×9+6×9) half-cut configuration reduces resistive losses and improves shade tolerance.
Titan PERC
The Titan series uses monocrystalline PERC cells with SMBB, NDS, and MBB technologies in a 132-cell (6×11+6×11) half-cut configuration, delivering 21.6% module efficiency at 670W. Available in both mono-facial and bifacial variants with aluminium or high-strength alloy steel frames. The steel frame option offers greater tear resistance, better corrosion resistance, lower carbon emissions, and lower energy consumption. Certified for 2,400 Pa wind load and 5,400 Pa snow load, with 12-year product warranty and 25-year linear power warranty.
All electrical parameters at STC: 1,000 W/m², 25°C, AM 1.5. Risen Energy reserves the right to change specifications without notice (RS-PB-2024V3).
| Parameter | Hyper-ion HJT RSM132-8-720-740BHDG |
TOPCon 630Wp+ RSM132-11-605-630BNDG |
TOPCon 515Wp+ RSM108-11-490-515NDG |
TOPCon 460Wp+ RSM96-11-440-460NDG |
Titan PERC RSM132-8-650-670BMDG |
|---|---|---|---|---|---|
| Cell Technology | |||||
| Cell Type | n-Type HJT | n-Type TOPCon | n-Type TOPCon | n-Type TOPCon | Mono PERC |
| Cell Configuration | 132 (6×11+6×11) | 132 (6×11+6×11) | 108 (6×9+6×9) | 96 (6×8+6×8) | 132 (6×11+6×11) |
| Power & Efficiency | |||||
| Power Range (W) | 720–740 | 605–630 | 490–515 | 440–460 | 650–670 |
| Max Module Efficiency | 23.8% | 23.3% | 23.2% | 23.0% | 21.6% |
| Temperature Coefficients | |||||
| Pmax Temp. Coeff. | −0.24%/°C | −0.29%/°C | −0.29%/°C | −0.29%/°C | −0.34%/°C |
| Voc Temp. Coeff. | −0.22%/°C | −0.25%/°C | −0.25%/°C | −0.25%/°C | −0.25%/°C |
| Mechanical Parameters | |||||
| Dimensions (mm) | 2384×1303×33/35 | 2382×1134×30 | 1961×1134×30 | 1762×1134×30 | 2384×1303×33/35 |
| Weight (Al frame) | 37.5 kg | 32.5 kg | 27.0 kg | 21.5 kg | 33.5 kg |
| Bifacial | Yes (85%±10%) | Yes (up to 30%) | Yes (up to 30%) | No | Mono / Bifacial |
| Warranty & Degradation | |||||
| Product Warranty | 15 Years | 15 Years | 15 Years | 15 Years | 12 Years |
| Power Warranty | 30 Years | 30 Years | 30 Years | 30 Years | 25 Years |
| First-Year Degradation | ≤ 1% | ≤ 1% | ≤ 1% | ≤ 1% | ≤ 2% |
| Annual Degradation (yr 2–30) | ≤ 0.3% | ≤ 0.3% | ≤ 0.3% | ≤ 0.3% | ≤ 0.45% (bifacial) |
| Max System Voltage | 1,500 V DC | ||||
| Mechanical Load | 5,400 Pa front / 2,400 Pa rear | ||||
| All-black products: 25-year product warranty | Risen Energy Tier-1 PV manufacturer | 95.6GW+ cumulative shipments (Q3 2024) | |||||
Hyper-ion HJT achieves 23.8% module efficiency with −0.24%/°C temperature coefficient — the best in Risen's range — and ≥ 90% power retention over 30 years.
N-type TOPCon cells eliminate B-O LID, delivering ≤ 0.3%/year degradation — the lowest in the industry — maximising lifetime energy yield and project IRR.
All Hyper-ion and TOPCon bifacial modules capture rear-side irradiance for up to 30% additional power gain, significantly reducing LCOE for ground-mount installations.
TOPCon 515Wp+ and 460Wp+ series offer all-black and black frame variants with 25-year product warranty — perfect for aesthetic residential rooftop integration.
Titan PERC 650–670W with high-strength alloy steel frame option delivers greater tear resistance, better corrosion resistance, and lower carbon emissions for large projects.

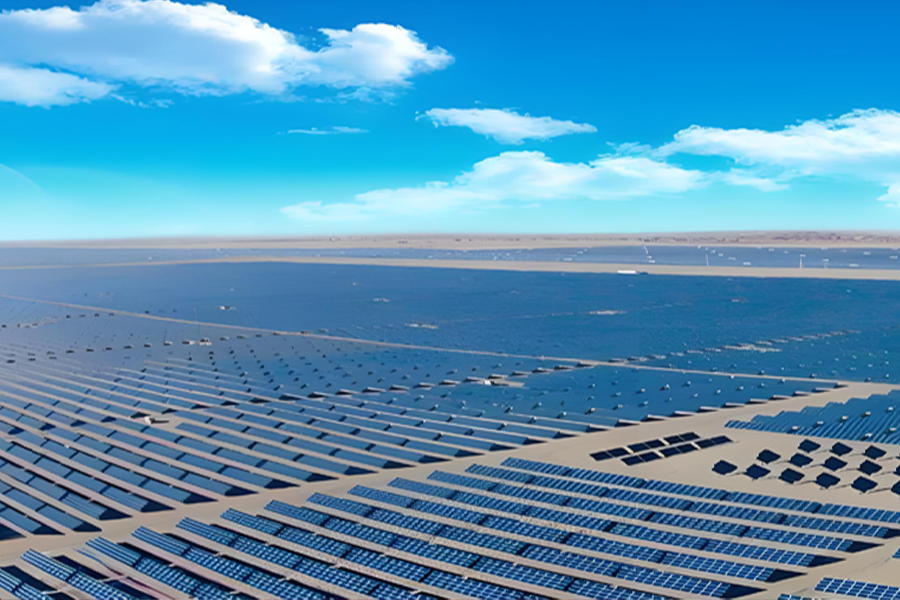

Risen Energy has delivered 95.6GW+ of modules across 150+ countries, with reference projects from 5MW residential to 600MW utility-scale in China, Europe, and Australia.
