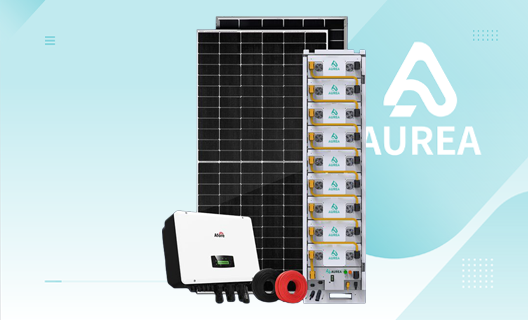

A premium three-phase residential energy storage system pairing a 15kW hybrid inverter with a 30kWh LFP battery stack — delivering whole-home backup, dedicated critical-load protection, and maximum solar self-consumption for large households and prosumers.
Three-Phase 15kW
The SUN-15K-SG01HP3-EU-AM2 three-phase hybrid inverter delivers 15kW of continuous AC output across all three phases, making it ideal for large homes with three-phase grid connections and high-power appliances. Dual MPPT inputs accept two independent PV strings (8 modules per string), enabling flexible roof layouts and maximising generation from different orientations. The inverter supports simultaneous grid-tied, battery charging, and backup load operation.
30kWh LFP Stack
Six BCW battery modules connect in series (1-1 through 1-6) to form a high-voltage 30kWh LFP battery stack. The series configuration delivers higher DC bus voltage, reducing current and improving round-trip efficiency. Each module integrates an independent BMS for cell-level protection, and the stack communicates with the inverter via the BAT COM interface for real-time SOC management, fault detection, and coordinated charge/discharge control.
Dedicated Backup
The system features a separate Backup Load output circuit, allowing critical loads — such as refrigerators, medical equipment, lighting, and communication devices — to be wired independently from the main household distribution board. During a grid outage, the inverter instantly switches the backup circuit to battery power in milliseconds, ensuring uninterrupted supply to essential appliances even when the main grid connection is lost.

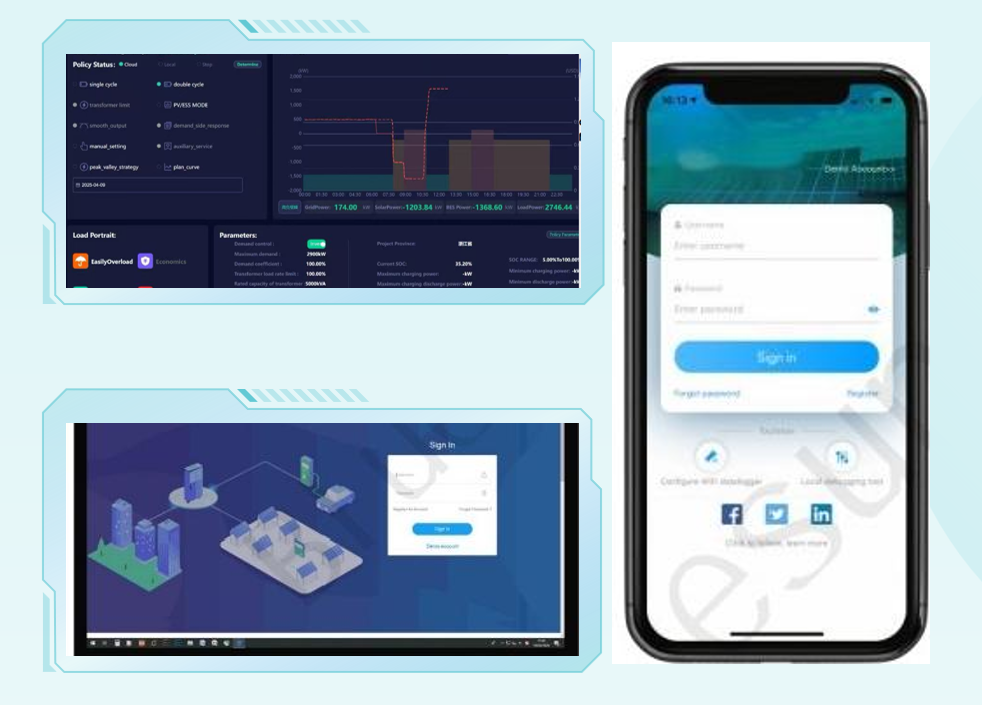

Smart Metering
An integrated main meter monitors real-time grid import/export at the point of connection, enabling precise zero-export control and demand response. The cloud EMS aggregates data from the inverter, battery stack, PV generation, and meter to optimise dispatch strategy automatically. Homeowners access live energy flows, historical reports, and remote control via a mobile app, with automated strategies covering self-consumption, time-of-use arbitrage, and backup reservation.
Complete technical data for the AUREA-RESS-15K30KWH. Compare with other models in the Residential ESS series or request a custom configuration.
| Parameter | 10kW / 20kWh | 15kW / 30kWh ★ | 15kW / 40kWh | 20kW / 40kWh |
|---|---|---|---|---|
| Model | AUREA-10K-20KWH | AUREA-15K-30KWH | AUREA-15K-40KWH | AUREA-20K-40KWH |
| Inverter | 10kW 3-phase | SUN-15K-SG01HP3-EU-AM2 | SUN-15K-SG01HP3-EU-AM2 | 20kW 3-phase |
| Total AC Power | 10 kW | 15 kW | 15 kW | 20 kW |
| Battery Modules | 4 × BCW | 6 × BCW (series) | 8 × BCW (series) | 8 × BCW (series) |
| Total Storage | 20 kWh | 30 kWh | 40 kWh | 40 kWh |
| PV Input | 2 strings | 2 × 8 modules | 2 × 8 modules | 2 strings |
| Backup Load | Supported | Supported | Supported | Supported |
| Cycle Life | ≥ 6,000 cycles | ≥ 6,000 cycles | ≥ 6,000 cycles | ≥ 6,000 cycles |
| Design Life | 15 Years | 15 Years | 15 Years | 15 Years |
| ★ Currently viewing: 15kW / 30kWh model | AUREA ENERGY — Better & Brighter Future | ||||
| Parameter | Specification |
|---|---|
| Battery System | |
| Battery Chemistry | LFP — Lithium Iron Phosphate |
| Module Type | BCW series, 6 modules in series |
| Total Capacity | 30 kWh |
| Usable Energy (90% DoD) | ≈ 27 kWh |
| Battery Interface | BAT COM (B+ / B−) |
| Cycle Life @ 80% DoD | ≥ 6,000 Cycles (25°C) |
| State of Health (EoL) | ≥ 80% Capacity Retention |
| Self-Discharge | ≤ 3% per month |
| Inverter | |
| Model | SUN-15K-SG01HP3-EU-AM2 |
| Rated AC Power | 15 kW (three-phase) |
| PV Input | 2 strings × 8 modules (dual MPPT) |
| AC Output Voltage | 3/N/PE, 230/400V / 50Hz |
| Backup Load Output | Dedicated backup circuit |
| Peak Efficiency | ≥ 98.0% |
| Communication | BAT COM / Wi-Fi / App / Modbus |
| Black-Start | Supported |
| System Performance | |
| Backup Duration | ≈ 6–15 hours (typical home load) |
| Zero-Export Control | Supported (main meter) |
| Payback Period | < 5 years (typical) |
| Design Life | 15 Years |
| Safety & Physical | |
| IP Rating (Inverter) | IP65 |
| IP Rating (Battery) | IP55 |
| Operating Temperature | −20°C ~ +55°C |
| Certifications | CE / IEC 62619 / UN38.3 / RoHS |
| Installation | Wall-mount or floor-stand |
Each subsystem is factory-assembled and individually tested before delivery — ensuring rapid installation and long-term reliability for three-phase residential applications.
The 15kW / 30kWh system is pre-wired and factory-tested. Certified installers complete on-site installation in one day, including backup load circuit wiring and full system commissioning.
