Key Features

Why Choose the 200kW On-Grid Solar System?

A complete 208kWp commercial rooftop solar solution with 2 × 100kW SINENG inverters, N-type bifacial modules, and cloud monitoring — generating 360–504 MWh of clean electricity per year with a payback period under 2 years.

208kWp Array

208kWp N-Type Bifacial PV Array (320 × 650W)

The system deploys 320 × 650W N-type bifacial modules with SMBB (Super Multi-Busbar) technology, delivering 208kWp of installed PV capacity. SMBB technology improves light trapping and current collection, increasing module power output by 5–25% compared to conventional modules. The N-type cells feature Hot 2.0 technology for lower LID/LETID degradation, excellent anti-PID performance, and certified mechanical load resistance of 2,400 Pa wind and 5,400 Pa snow — backed by a Tier-1 brand 25-year linear power warranty.

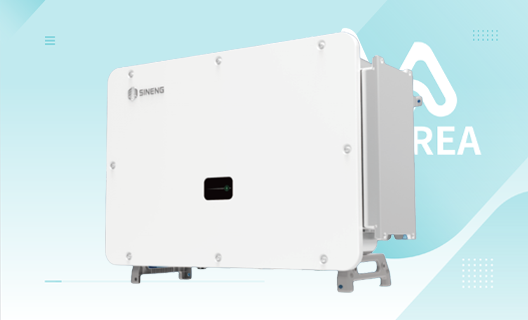

2 × 100kW SINENG

2 × 100kW SINENG String Inverters (≥ 99% Efficiency)

Two SINENG 100kW string inverters operate in parallel, each with 10 independent MPPT channels supporting up to 20 strings and a maximum input current of 42A per MPPT. The modular DC/DC and DC/AC design allows independent maintenance and replacement of each module without shutting down the entire system. Peak conversion efficiency reaches ≥ 99.0%, and the inverters are certified to CE, IEC 62109, IEC 61727, IEC 61683, IEC 62116, IEC 60068, and IEC 61000.

Flexible Mounting

Roof & Ground Mounting System

The system is optimised for a 126m × 18m rooftop at 10° slope (eaves 6.7m, ridge 8.29m) but supports all major mounting configurations: roof tiles, corrugated fibre cement, trapezoidal sheet metal, standing seam, and ground-mount. Ground-mount frames support 15°–30° inclination with no planning required for 14–20 module assembly packages. All mounting hardware is hot-dip galvanised or anodised aluminium for 25-year corrosion resistance.

< 2-Year Payback

Cloud Monitoring & Under 2-Year ROI

The integrated data logger collects real-time generation data from all inverters via Modbus RS485 and uploads to the cloud server, providing a local web server for easy configuration, export control with meters, and remote performance monitoring. The system generates 1,000–1,400 kWh/day (360–504 MWh/year), delivering a typical return on investment in under 2 years through self-consumption savings and surplus electricity sold back to the grid — one of the fastest payback periods in the commercial solar market.

System Parameters

System Configuration & Specifications

Complete technical data for the AUREA 200kW On-Grid Solar System. Simulated using PV Syst with 680W TW Solar panels + SINENG 125kW inverters (2023 data).

AUREA On-Grid Solar Series — Capacity Comparison

Parameter	50kW	200kW ★	400kW	1MW
PV Capacity	≈ 55 kWp	208 kWp (320 × 650W)	≈ 440 kWp	≈ 1,100 kWp
Inverter	1 × 50kW	2 × 100kW SINENG	4 × 100kW	Central / String
AC Output	50 kW	200 kW	400 kW	1,000 kW
Grid Voltage	3/N/PE 400V	3/N/PE 220V/380V–230V/400V	3/N/PE 400V	3/N/PE 400V
Daily Generation	500–700 kWh	1,000–1,400 kWh	2,000–2,800 kWh	5,000–7,000 kWh
Annual Generation	≈ 90–126 MWh	360–504 MWh	720–1,008 MWh	1,800–2,520 MWh
Payback Period	< 3 years	< 2 years	< 2 years	< 2 years
Design Life	25 Years	25 Years	25 Years	25 Years
★ Currently viewing: 200kW model \| AUREA ENERGY — Better & Brighter Future

Detailed Technical Specifications — 200kW On-Grid Solar

Parameter	Specification
PV Array
Module Type	N-Type Bifacial, SMBB Technology
Module Power	650W (Tier-1 brand)
Module Quantity	320 modules
Total PV Capacity	208 kWp
Module Warranty	25-year linear power output
Mechanical Load	Wind 2,400 Pa / Snow 5,400 Pa
Inverter System
Inverter Model	SINENG 100kW × 2 (200kW total)
Rated / Max Power	100kW / 110kW per unit
MPPT Channels	10 MPPT × 20 strings per inverter
Max Input Current	10 × 42A per inverter
AC Output Voltage	3/N/PE, 220V/380V or 230V/400V, 50Hz
Peak Efficiency	≥ 99.0%
Certifications	CE / IEC 62109 / IEC 61727 / IEC 61683 / IEC 62116
System Performance
Daily Generation	1,000–1,400 kWh/day
Monthly Generation	30,000–42,000 kWh/month
Annual Generation	360–504 MWh/year
Payback Period	< 2 years (typical C&I)
Design Life	25 Years
Monitoring & Communication
Data Logger	Modbus RS485 to cloud server
Local Interface	Web server for configuration
Export Control	Supported (with meters)
Remote Access	Cloud dashboard + mobile app

Products Details

Core Subsystem Overview

Each subsystem is sourced from Tier-1 manufacturers, pre-tested, and delivered as a complete package — ensuring rapid installation and long-term generation performance.

N-Type Bifacial PV Modules (650W)

SMBB technology — 5–25% higher power output vs. conventional
Hot 2.0 technology — lower LID/LETID, better long-term reliability
Excellent anti-PID performance
Wind 2,400 Pa / Snow 5,400 Pa certified
Tier-1 brand 25-year linear power warranty

SINENG 100kW String Inverter

100kW rated / 110kW max — 10 MPPT × 20 strings
Max input current 10 × 42A
Peak efficiency ≥ 99.0%
Modular DC/DC + DC/AC design for easy maintenance
CE / IEC 62109 / IEC 61727 / IEC 61683 certified

Mounting System

Supports roof tiles, corrugated sheet, trapezoidal, standing seam
Ground-mount: 15°–30° inclination, no planning required
Optimised for 126m × 18m rooftop at 10° slope
Hot-dip galvanised / anodised aluminium — 25-year durability
Splash water protection and elevated module clearance

Monitoring System

Data logger via Modbus RS485 — all inverters connected
Local web server for easy on-site configuration
Export control with revenue-grade meters
Cloud dashboard + mobile app for remote monitoring
Daily / monthly / annual generation reports

System Installation & Commissioning

The 200kW system is delivered as a complete engineered package. Our project team manages structural works, electrical installation, grid connection, and commissioning — typically completed within 5–7 working days on site.

Structural & Module InstallationInstall mounting system on 126m × 18m rooftop, lay 320 modules in optimised string configuration, and route DC cables to inverter locations.

Inverter & AC WiringMount 2 × SINENG 100kW inverters, connect DC strings to MPPT inputs, wire AC outputs to combiner panel and main breaker, install revenue meter.

Grid Connection & Protection TestCoordinate with utility for 380V/400V grid connection, verify protection relay settings, test anti-islanding, and confirm metering accuracy.

Monitoring Setup & HandoverConnect data logger via RS485, configure cloud platform, verify real-time generation data, set export control thresholds, and deliver as-built documentation.

Why Choose Aurea Energy?

Under 2-Year Payback — 1,000–1,400 kWh/day generation with self-consumption savings and grid export revenue delivers one of the fastest ROIs in commercial solar.
Tier-1 Components Only — 650W N-type bifacial modules with SMBB + Hot 2.0 technology and SINENG ≥ 99% efficiency inverters — no compromise on quality.
208kWp Proven Configuration — PV Syst simulated with 2023 data, validated against real project references in Spain, Morocco, Bulgaria, and South Africa.
Modular Inverter Design — Independent DC/DC and DC/AC modules allow single-unit maintenance without system shutdown, maximising uptime and minimising O&M costs.
Full EPC Service — Aurea handles design, procurement, mounting, electrical installation, grid connection, and commissioning — single point of accountability.
Globally Certified — CE, IEC 61215, IEC 61730, CGC, TUV certified. Compliant with IEEE 1547, AS/NZS 4777, and EN 50549 grid connection standards.
