Key Features

Why Choose the 400kW Grid-Connected PV System?

A fully engineered 400kW commercial grid-connected photovoltaic system — doubling the capacity of a standard 200kW installation while sharing the same proven architecture of string inverters, AC combiner, revenue metering, and cloud monitoring.

400kW AC Output

400kW Multi-String Inverter Configuration

The system deploys multiple commercial string inverters totalling 400kW of AC output, connected through an AC combiner panel to the utility grid via a main breaker and revenue-grade metering point. Each string inverter operates with independent MPPT tracking, ensuring maximum power extraction from every PV string regardless of partial shading or module mismatch. The modular layout means any single inverter can be serviced without shutting down the rest of the array — maximising uptime for large commercial sites.

≈ 440kWp Array

Grade-A Bifacial N-Type PV Array (~440kWp)

The array uses Grade-A bifacial N-type TOPCon or HJT modules with module efficiency exceeding 22%, delivering approximately 480,000–560,000 kWh of clean electricity per year depending on location and irradiance. Bifacial modules capture reflected light from the rear surface, adding 5–15% additional yield on light-coloured rooftops or ground-mount installations. Each module carries a 25-year linear power output warranty, ensuring long-term generation performance throughout the project lifetime.

Grid-Ready

AC Combiner, Revenue Metering & Grid Protection

All inverter AC outputs feed into a centralised AC combiner panel equipped with circuit breakers, surge protection devices (SPDs), and an integrated revenue-grade bidirectional energy meter. The meter records generation data for feed-in tariff billing and provides real-time import/export monitoring. Grid protection relays ensure automatic disconnection under abnormal voltage or frequency conditions, meeting local grid connection standards including IEEE 1547, AS/NZS 4777, and EN 50549.

Smart Monitoring

Cloud Monitoring & Remote O&M Platform

Every inverter connects to a cloud-based monitoring platform via Wi-Fi, 4G, or Ethernet, providing real-time visibility of string-level power output, inverter status, energy yield, and CO₂ savings. Automated fault alerts notify the O&M team by SMS or email within minutes of any anomaly. The platform generates daily, monthly, and annual performance reports, and supports remote parameter adjustment and firmware updates — minimising on-site service visits and maximising system uptime across the full 400kW installation.

System Parameters

System Configuration & Specifications

Complete technical data for the AUREA-OGSS-400KW (SR-F2505-04). Compare with other capacities in the On-Grid Solar series or request a custom configuration.

AUREA On-Grid Solar Series Configuration

Parameter	100kW	200kW	400kW ★	1MW
Model	AUREA-OGSS-100K	AUREA-OGSS-200K	AUREA-OGSS-400K	AUREA-OGSS-1MW
Total AC Power	100 kW	200 kW	400 kW	1,000 kW
PV Array Size	≈ 110 kWp	≈ 220 kWp	≈ 440 kWp	≈ 1,100 kWp
Annual Generation	≈ 130,000 kWh	≈ 260,000 kWh	≈ 520,000 kWh	≈ 1,300,000 kWh
Inverter Type	String	String	String	Central / String
Grid Voltage	3/N/PE 400V	3/N/PE 400V	3/N/PE 400V	3/N/PE 400V
Module Type	N-Type Bifacial	N-Type Bifacial	N-Type Bifacial	N-Type Bifacial
Design Life	25 Years	25 Years	25 Years	25 Years
★ Currently viewing: 400kW model (SR-F2505-04 V1.0) \| AUREA ENERGY — Better & Brighter Future

Detailed Technical Specifications — 400kW Grid-Connected PV

Parameter	Specification
PV Array
Module Type	Grade-A N-Type Bifacial TOPCon / HJT
Module Efficiency	≥ 22%
Total PV Capacity	≈ 440 kWp
Module Warranty	25-year linear power output
Bifacial Gain	5–15% additional yield
Inverter System
Total AC Power	400 kW
Inverter Type	Commercial string inverters (multi-unit)
MPPT Channels	Independent per string
AC Output Voltage	3/N/PE, 400V / 50Hz
Peak Efficiency	≥ 98.6%
IP Rating	IP65
AC Side
AC Combiner	Multi-way combiner with MCBs and SPDs
Energy Meter	Revenue-grade bidirectional meter
Grid Protection	Over/under voltage, over/under frequency, anti-islanding
Grid Standards	IEEE 1547 / AS/NZS 4777 / EN 50549
System Performance
Annual Generation	≈ 480,000 – 560,000 kWh / year
System Efficiency	≥ 80% PR (Performance Ratio)
Payback Period	< 5 years (typical C&I)
Design Life	25 Years
Monitoring & Communication
Communication	Wi-Fi / 4G / Ethernet / RS485
Monitoring Platform	Cloud dashboard + mobile app
Data Logging	String-level, 5-minute intervals
Certifications	CE / IEC 61215 / IEC 61730 / MCS

Products Details

Core Subsystem Overview

Each subsystem is engineered, sourced, and pre-tested before delivery — ensuring rapid site installation and long-term generation performance for large commercial on-grid applications.

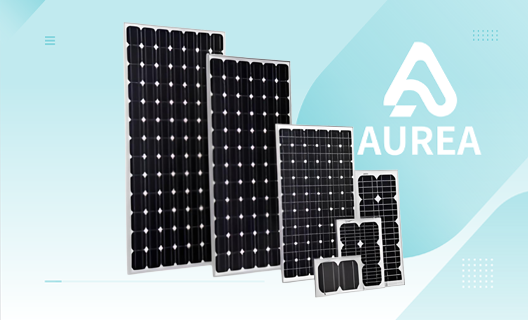

N-Type Bifacial PV Modules

Grade-A N-Type TOPCon / HJT — module efficiency ≥ 22%
Bifacial design adds 5–15% rear-side yield
25-year linear power output warranty
Low temperature coefficient — better hot-climate performance
IEC 61215 / IEC 61730 certified

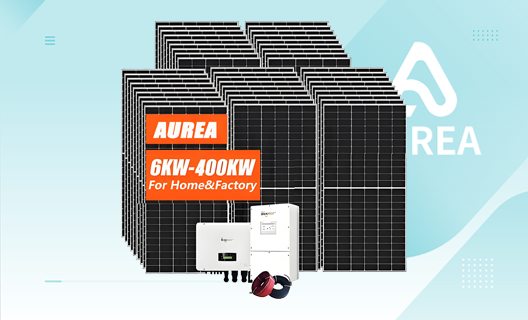

Commercial String Inverters

Multi-unit configuration — 400kW total AC output
Independent MPPT per string for maximum yield
Peak conversion efficiency ≥ 98.6%
IP65 rated for outdoor installation
Modular — single unit serviceable without system shutdown

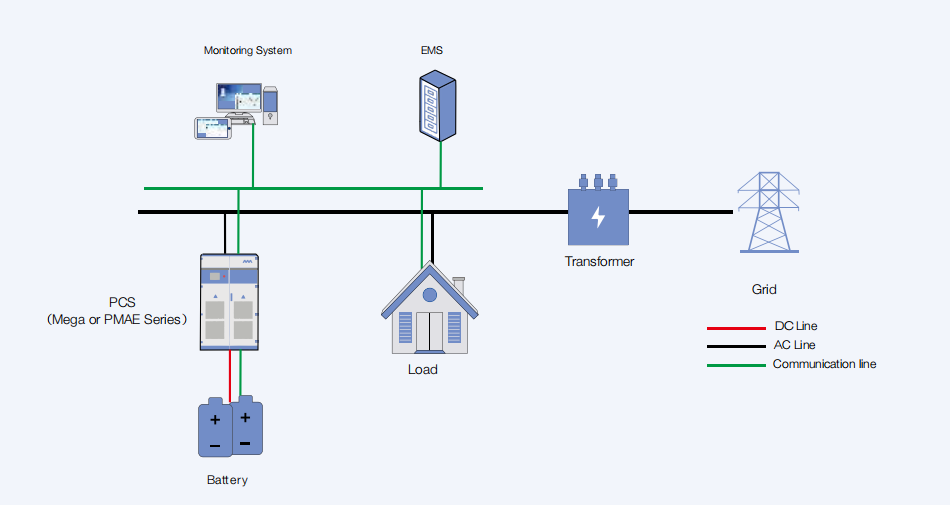

AC Combiner & Grid Protection

Multi-way AC combiner with MCBs per inverter output
Surge protection devices (SPDs) on AC and DC sides
Revenue-grade bidirectional energy meter
Grid protection relay — voltage, frequency, anti-islanding
Compliant with IEEE 1547 / AS/NZS 4777 / EN 50549

Cloud Monitoring Platform

String-level real-time monitoring via Wi-Fi / 4G / Ethernet
Automated fault alerts via SMS and email
Daily, monthly, and annual generation reports
Remote parameter adjustment and OTA firmware updates
CO₂ savings tracking and export revenue reporting

System Installation & Commissioning

The 400kW system is delivered as a complete engineered package (SR-F2505-04 V1.0). Our project team manages civil works, electrical installation, grid connection, and commissioning — typically completed within 7–14 working days on site.

Structural & DC InstallationMount racking system, install PV modules, route DC cables to string inverters, and connect DC combiner boxes with fusing and SPDs.

Inverter & AC Panel InstallationMount and wire string inverters, connect AC outputs to combiner panel, install revenue meter, and complete main breaker connection to grid point.

Grid Connection & Protection TestCoordinate with utility for grid connection approval, verify protection relay settings, test anti-islanding, and confirm metering accuracy.

Monitoring Setup & HandoverConnect all inverters to cloud platform, verify string-level data logging, configure alert thresholds, and deliver as-built documentation and O&M manual.

Why Choose Aurea Energy?

400kW Proven Commercial Scale — Fully engineered system with multi-string inverters, AC combiner, and revenue-grade metering — ready for utility grid connection on day one.
≥ 22% Module Efficiency — Grade-A N-Type bifacial modules with 25-year linear warranty deliver the highest energy yield per square metre of roof or ground area.
Sub-5-Year Payback — Typical C&I payback under 5 years through self-consumption savings, feed-in tariff revenue, and carbon credit income.
String-Level Monitoring — Cloud platform with 5-minute data logging, automated fault alerts, and remote O&M capability minimises downtime and maximises annual yield.
Full EPC Service — Aurea handles design, procurement, civil works, electrical installation, grid connection, and commissioning — single point of accountability.
Globally Certified — CE, IEC 61215, IEC 61730, MCS certified. Compliant with IEEE 1547, AS/NZS 4777, and EN 50549 grid connection standards.
