A compact all-in-one residential energy storage solution pairing a 10.3kW hybrid solar inverter with a 48V 200Ah LFP battery — delivering energy independence, backup power, and maximum solar self-consumption for modern homes.

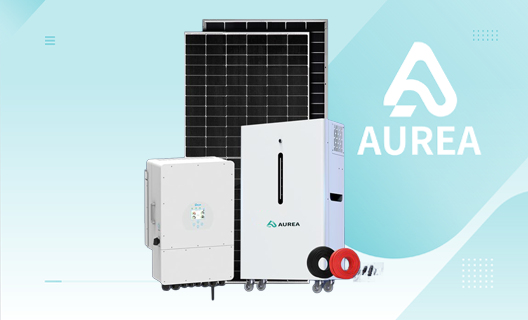

Solar Integration
The system integrates a 10.3kW hybrid solar inverter with 10 × 700W bifacial PV modules, generating approximately 9,000–11,000 kWh of clean electricity per year depending on location. The built-in EMS automatically prioritises solar self-consumption, charges the battery during surplus generation, and seamlessly switches to grid or battery backup — reducing household electricity bills by up to 80%.

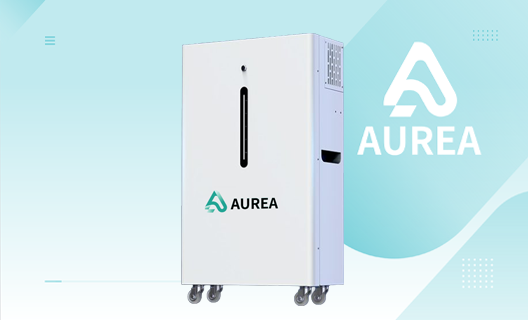

9.6kWh LFP Storage
The 48V 200Ah lithium iron phosphate battery delivers 9.6kWh of usable energy — enough to power a typical household through the night or sustain critical loads during a grid outage. LFP chemistry provides superior thermal stability, zero risk of thermal runaway, and over 6,000 deep-cycle charge-discharge cycles, extending calendar life beyond 15 years with ≥ 80% capacity retention at end of life.
Flexible Dispatch
Homeowners select from Self-Consumption, Backup Priority, or Time-of-Use modes to match their energy tariff and lifestyle. Self-Consumption maximises solar usage before drawing from the grid. Backup Priority keeps the battery reserved for outages. Time-of-Use charges the battery during cheap off-peak periods and discharges during expensive peak hours — delivering maximum bill savings regardless of grid tariff structure.
Smart EMS
The integrated monitoring system provides full visibility over PV generation, battery state of charge, home load consumption, and grid import/export through a web dashboard and mobile app. Automated strategies include self-consumption optimisation, peak shaving, and demand response. Remote firmware updates and fault diagnostics ensure the system stays optimised throughout its lifetime without requiring on-site service visits.
Complete technical data for the AUREA-RESS-10K10KWH. Compare with other models in the Residential ESS series or request a custom configuration.
| Parameter | 5kW / 5kWh | 10kW / 10kWh ★ | 15kW / 15kWh | 20kW / 20kWh |
|---|---|---|---|---|
| Model | AUREA-5K-5KWH | AUREA-10K-10KWH | AUREA-15K-15KWH | AUREA-20K-20KWH |
| Inverter Power | 5 kW | 10.3 kW | 15 kW | 20 kW |
| Battery Capacity | 48V 100Ah / 4.8kWh | 48V 200Ah / 9.6kWh | 48V 300Ah / 14.4kWh | 48V 400Ah / 19.2kWh |
| PV Input | 6 × 700W = 4.2kWp | 10 × 700W = 7kWp | 15 × 700W = 10.5kWp | 20 × 700W = 14kWp |
| Battery Chemistry | LFP | LFP | LFP | LFP |
| AC Output Voltage | 230V / 50Hz | 230V / 50Hz | 230V / 50Hz | 230V / 50Hz |
| Cycle Life | ≥ 6,000 cycles | ≥ 6,000 cycles | ≥ 6,000 cycles | ≥ 6,000 cycles |
| Design Life | 15 Years | 15 Years | 15 Years | 15 Years |
| ★ Currently viewing: 10kW / 10kWh model | AUREA ENERGY — Better & Brighter Future | ||||
| Parameter | Specification |
|---|---|
| Battery System | |
| Battery Chemistry | LFP — Lithium Iron Phosphate |
| Nominal Voltage | 48V |
| Capacity | 200Ah / 9.6kWh |
| Usable Energy (90% DoD) | ≈ 8.6kWh |
| Cycle Life @ 80% DoD | ≥ 6,000 Cycles (25°C) |
| State of Health (EoL) | ≥ 80% Capacity Retention |
| Self-Discharge | ≤ 3% per month |
| Inverter / PCS | |
| Rated AC Power | 10.3 kW |
| Max PV Input Power | 7,000 Wp (10 × 700W modules) |
| PV Input Voltage Range | 120V – 500V DC |
| AC Output Voltage | 230V / 50Hz (single phase) |
| Peak Efficiency | ≥ 97.6% |
| Communication | CAN / RS485 / Wi-Fi / App |
| Black-Start | Supported |
| System Performance | |
| Annual PV Generation | ≈ 9,000 – 11,000 kWh / year |
| Backup Duration | ≈ 4–8 hours (typical home load) |
| Payback Period | < 5 years (typical) |
| Design Life | 15 Years |
| Safety & Physical | |
| IP Rating (Inverter) | IP65 |
| IP Rating (Battery) | IP55 |
| Operating Temperature | −20°C ~ +55°C |
| Certifications | CE / IEC 62619 / UN38.3 / RoHS |
| Installation | Wall-mount or floor-stand |
Each subsystem is factory-assembled, individually tested, and pre-commissioned before delivery — ensuring rapid installation and long-term reliability for residential applications.
Every AUREA residential ESS is pre-configured and tested at the factory. On-site installation is completed by a certified installer in a single day, with full system commissioning and handover.
